Sound Stages for Film and TV recordings

STAGE 10
Features

The sound stage is 661m2 in size.

The entrance doors are 5.5m tall and 4.5m wide.

Installed with 21 self-climbing lighting hoists.

The stage floor, wall and catwalks are equipped with 180 wire hooks for use in wire-action scenes.

Available in Stage , Stockyard, Monitor rooms, Cast green rooms

SPEC

Length(m) Width(m) Height(m) Area(m2)
33.5 20.1 9 673.4

Lighting hoists : 21 (IFF self-climbing hoists)
Electrical capacity – 400kw / Air conditioning – cooler and heater
Wireless internet connection / 8 Internet Network sockets
Sound recording – sync recording system / Rain effects /180 wire hooks on stage wall, floor and catwalks

*Please contact us for more detail on maximum electricity capacity.

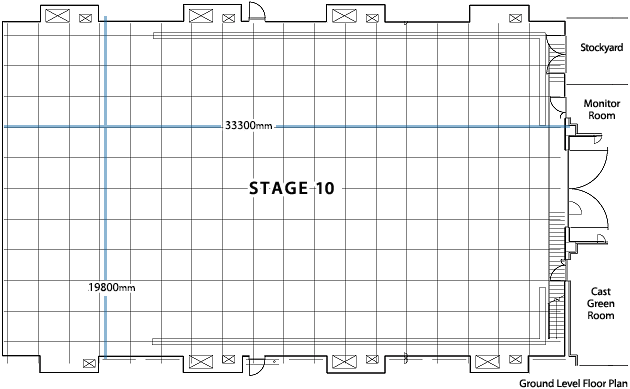

LAYOUT




Other

Monitoring room
· Number of rooms -1 (1st. floor)
· 12 Network sockets / 8 Internet Network sockets

CastGreenRoom
· Number of rooms -1(1st. floor)
· Internet connection socket
